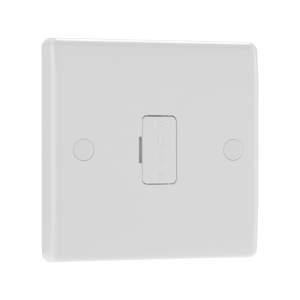

BG Rounded Edge Switch - Unswitched & Fused With Flex Outlet
• The subtle design will blend with any décor - suitable for domestic or commercial installations.
• White moulded round edge, sleek and slim with softly rounded edges.

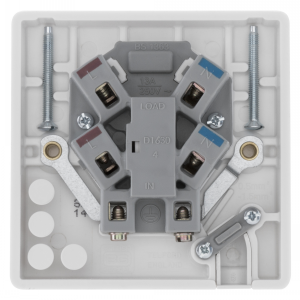

• Colour coded terminals with backed out captive screws for easy installation.
• Easy to install, supplied with fixing screws and installation instructions.
• Covers to conceal fixing screws.
Technical Specifications:
• Standard: BS 1363 Part 4
• ASTA Approval: License Number 1015
• Rating: 13 Amp 250V~
• Switch Type: Double pole
• Contact Gap: 3.0mm minimum
• Terminal Capacity: 3 x 2.5mm² 2 x 4.0mm² 1 x 6.0mm²
• Mounting Box Depth (Min): 35mm
• Fixing Centres: 60.3
• Size: 86mm x 86mm x 28.8mm
